Jelpc 50X350 SQ Piston
0 Yorum
Stok Kodu
JPSQ50X350-30531
Kategori
2.257,20 TL
139,03 TL den başlayan taksitlerle!

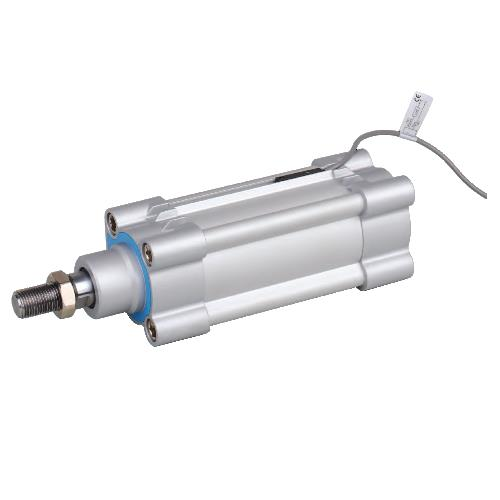

Jelpc 50x350 SQ Pnömatik Piston
Çap: 50mm
Strok: 350mm
Model: SQ Serisi
Menşei: China
Specification
|
Bore (mm) |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
|
Operation |
Double Acting | ||||||
|
Working Medium |
Air | ||||||
|
Mountings |
Basic FA FB CA CB LB YB | ||||||
|
Operating Pressure Range |
1～9.0 Kgf/cm² | ||||||
|
Proof Pressure |
13.5 Kgf/cm² | ||||||
|
Operating Temperature Range |
-20～80℃ | ||||||
|
Operating Speed Range |
50～800mm/s | ||||||
|
Cushion |
Adjustable Cushion | ||||||
|
Adjustable Cushion Stroke |
20 mm |
26 mm | |||||
|
Port Size |
G1/8″ |
G1/4″ |
G3/8″ |
G1/2″ | |||
